Post Mount Wireless Vehicle Detection e-LOOP System – EL00PM
EAN:
SKU: N/A
£414.00 – £444.00 inc VAT
£345.00 – £370.00 ex VAT

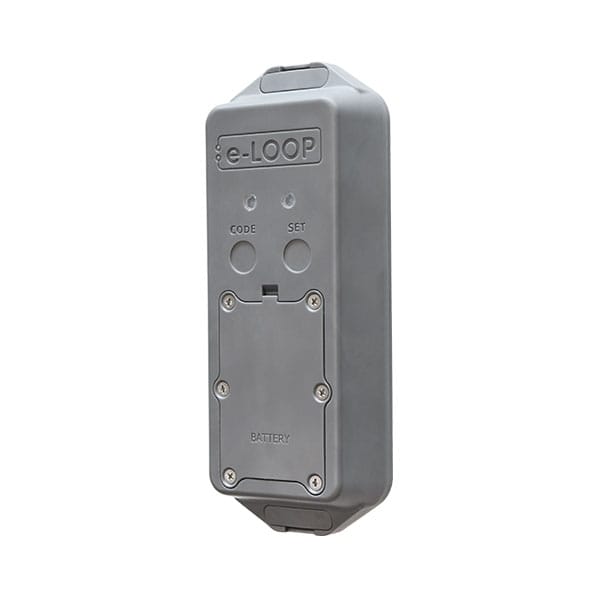

The AES Post Mounted Wireless Vehicle Detection System is a reliable solution for detecting vehicle movement and presence. Using military-grade magnetometer sensors with added radar confirmation, it ensures accurate detection in all weather conditions. Installation is fast and non-permanent, while its ultra-compact design remains discreet and unobtrusive. Once installed and paired with the included transceiver, the system is ready to use, sending a signal to nearby control systems whenever a vehicle is detected. With up to 3 years of battery life and secure 128-bit AES encrypted communication, it is a durable, efficient and secure detection system for gates and access control.
Description
KIT CONTAINS:
Key Features at a Glance:
-
Military-grade magnetometer with radar confirmation for vehicle detection
-
Fast, simple, and unobtrusive installation
-
Reliable radio communication with 128-bit AES Encryption
-
Exit/Entry mode and Presence detection modes
-
Up to 3-year battery life (2 x 1.5 V 3000mA AA lithium batteries)
-
Compatible with various gate systems (requires gate/door controller with dedicated open input and auto-close function)
Technical Data
-
Detection Sensor: 3-axis magnetometer
-
Sampling Rate: 8 Hz
-
Operating Modes: Entry/Exit, Presence
-
Radio Frequency: 433.39 MHz (FSK modulation)
-
Nominal Output Power: 10 dBm
-
Receive Sensitivity: –126.2 dBm
-
Security: 128-bit AES Encryption
-
Compliance: CE Approved, EMC tested (EN 301 489-1, EN 55032, EN 300 220-1)
-
Power Supply: 2 × 1.5 V AA Lithium batteries (3000 mA)
-
Standby Power Consumption: 14 μA
-
Activation Power Consumption: 35 mA
-

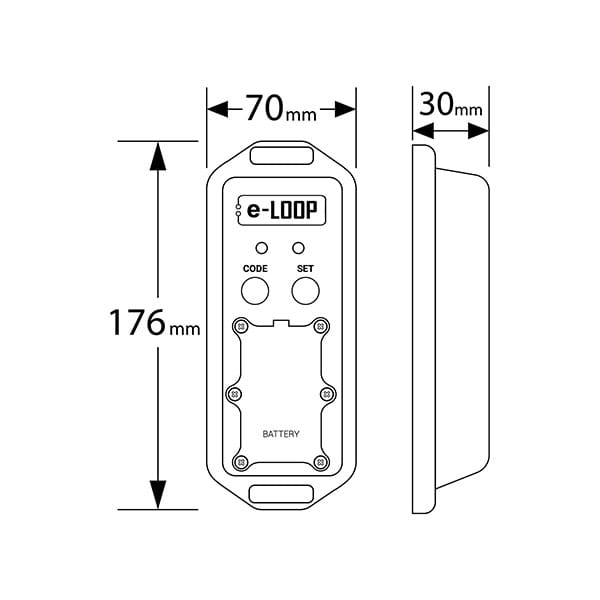

Dimensions: 176 × 70 × 30 mm
-
Weight: 200 g
-
Ingress Protection: IP68
-
Operating Temperature: –40°C to +80°C
-

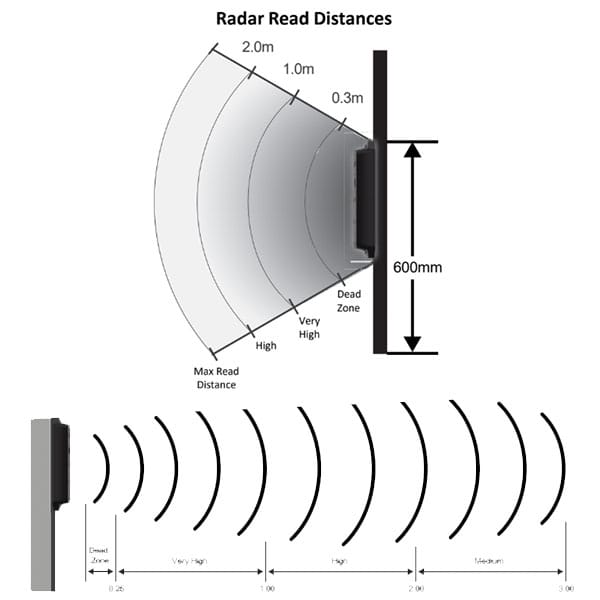

Mounting Requirement: Post-mounted at 600 mm from ground level
Delivery & Returns
UK Mainland Delivery Charges (Excludes Scottish Highlands – see below)
Orders under £250 excluding VAT
£15
Orders over £250 excluding VAT
FREE (Trade £15)
For barriers, barrier booms and bollards, regardless of order value (excluding VAT).
£75 (Trade £90)
Delivery Charges Outside UK Mainland
3 Working day delivery service
£30
3 Working day delivery service for double underground kits
£60
3 - 5 Working day delivery for barriers, barrier booms and bollards
£140
Product Attributes
Brand |
AES |
Wired or Wireless |
Wireless |
With or without transceiver |
With, Without |
